Syntax SGH modules, inserts and contacts

Available modules
and contacts

Discover the the freedom of a truly modular connector

Available modules
and contacts

Discover the the freedom of a truly modular connector

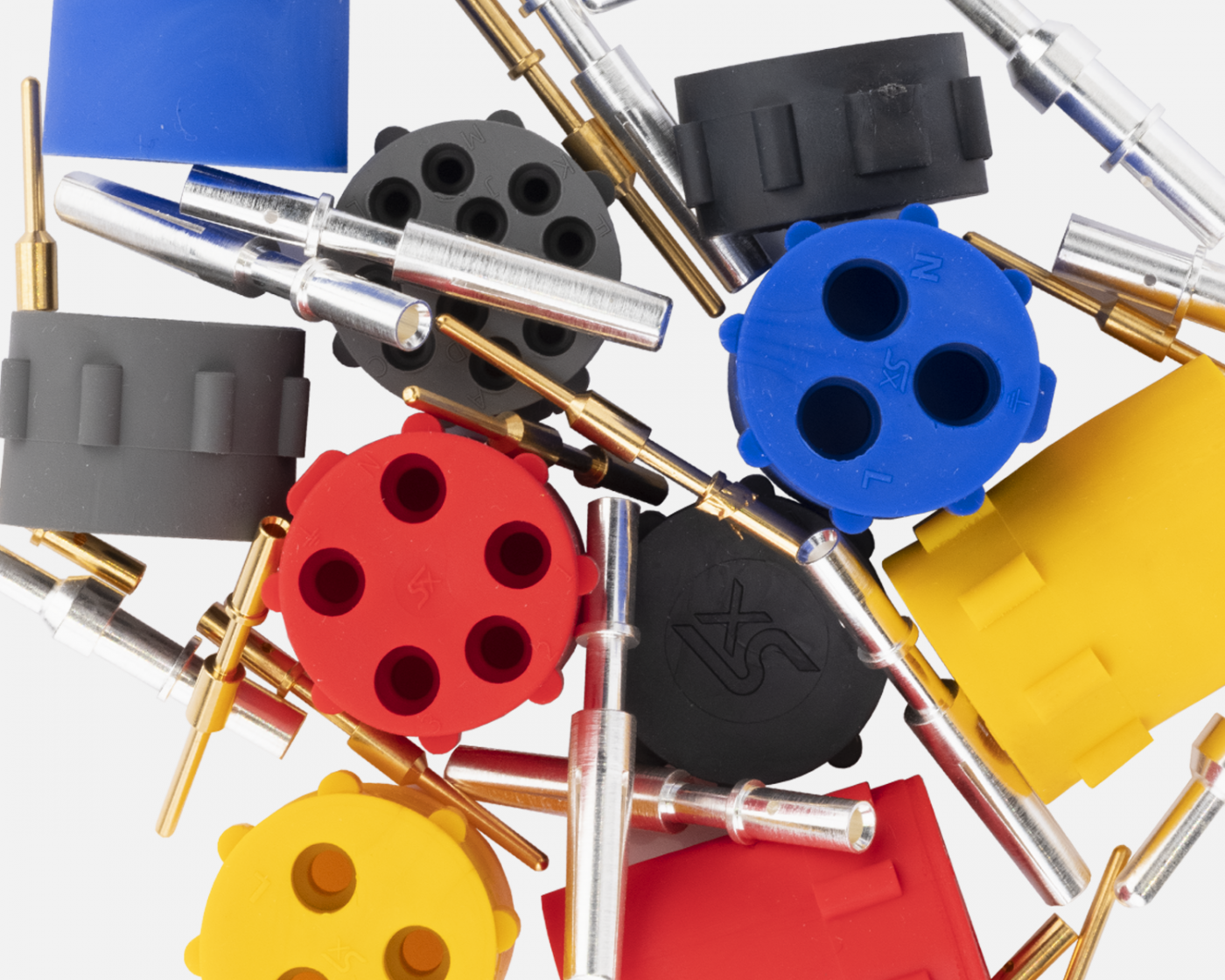

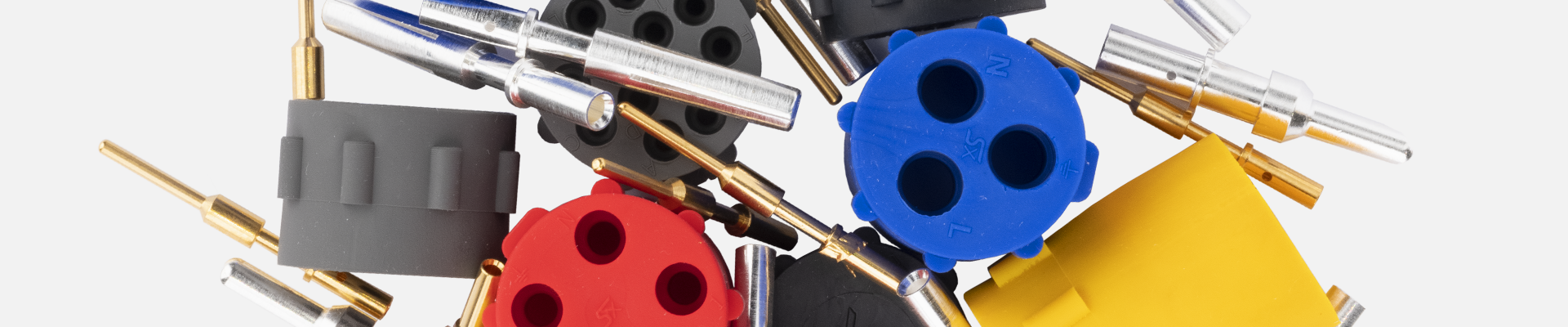

A complete range of modules and central inserts giving your Syntax Gigamod Hybrid limitless possibilities of power and signal configurations.

  • Syntax SGH circular modular connectors

    Don't let anyone
    decide for you

    Don't let anyone
    decide for you

    Turn SGH into a solution that perfectly suits your work

    Turn SGH into a solution that perfectly
    suits your work

    The real advantage of a modular connector like our Syntax Gigamod Hybrid series is the power to choose the features you actually need, without settling for a generic product that might not fulfill all your connection needs. Any central inserts, outer signal modules and contacts are compatible with both SGH 8.1 and SGH 16.1.

  • Application fields

    Application fields

    The versatility of a fully hybrid and modular connector

    The versatility of a fully hybrid
    and modular connector

  • Countless ways to improve your work

    Countless ways to improve your work

    Imagine the limitless applications of a multimodule connector for Ethernet/HDMI/USB3 signals also carrying a central module for power or additional signals. Check out the application fields page for a few examples. And for more possibilities… no one knows your business like you do.

    Find out more
  • Modularity is the name of the game

    Modularity is the name of the game

    Modularity is the name
    of the game

    Core element and module housings

    Core element and module housings

    The core shell (for 8 or 16 modules) is a crosstalk-proof section for signals that are particularly sensitive to interference and crosstalk phenomena, such as ethernet lines or digital signals in general.

    The central insert is an electrically insulated section for signal types requiring high insulation between contacts, such as main power, speaker lines or analog audio signals.

    SGH 16-module connector shown in the picture on the left.
  • Syntax SGH power central modules

    Central inserts

    Central inserts

    The added value at the center of the SGH
    circular connectors

    The added value at the center
    of the SGH circular connectors

    Explore the complete range of all currently available inserts designed for the central section of the SGH models. Complete your SGH connector choosing from 5 different inserts, three for power, one for additional signals and one blank insert serving as insulation.

  • Power central inserts

    Power central inserts

    supplied with power contacts (pre-installed) and Capsulock

    supplied with power contacts (pre-installed)
    and Capsulock

    Visit Capsulock power contacts page >>

     Power central inserts

  • Male

    Male

    3p+N+E (4p 5w)

    3p+N+E (4p 5w)

    Male

    2,5mm˛ / 12 AWG


    Capsulock
    2,5 mm˛ / 12 AWG power contacts

    Part No. SGHCL11

  • Female

    Female

    3p+N+E (4p 5w)

    3p+N+E (4p 5w)

    Female

    2,5mm˛ / 12 AWG


    Capsulock
    2,5 mm˛ / 12 AWG power contacts

    Part No. SGHCL11

  • Male and female high conductivity alloy machined contacts

    Male and female high conductivity alloy machined contacts

    SGHP11GMC and SGHP11GFC

    SGHP11GMC and SGHP11GFC



    Contact size11Section2.5 mm2 / 12 AWG
    Potential drop63 mV
    Voltage rating AC700 VVoltage rating DC500 V
    Max current41 AmpRated current23 Amp
    Min. Flashover2800 Vac RMSTest voltage2000 Vac RMS

  • Male

    Male

    2p+E (2p 3w)

    2p+E (2p 3w)

    Male

    2,5mm˛ / 12 AWG


    Capsulock
    2,5 mm˛ / 12 AWG power contacts

    Part No. SGHCL11

  • Female

    Female

    2p+E (2p 3w)

    2p+E (2p 3w)

    Female

    2,5mm˛ / 12 AWG


    Capsulock
    2,5 mm˛ / 12 AWG power contacts

    Part No. SGHCL11

  • Male and female high conductivity alloy machined contacts

    Male and female high conductivity alloy machined contacts

    SGHP11GMC and SGHP11GFC

    SGHP11GMC and SGHP11GFC



    Contact size11Section2.5 mm2 / 12 AWG
    Potential drop63 mV
    Voltage rating AC700 VVoltage rating DC500 V
    Max current41 AmpRated current23 Amp
    Min. Flashover2800 Vac RMSTest voltage2000 Vac RMS

  • Male

    Male

    2p+E (2p 3w)

    2p+E (2p 3w)

    Male

    6mm˛  / 10 AWG


    Capsulock
    6mm˛  / 10 AWG power contacts

    Part No. SGHCL10

  • Female

    Female

    2p+E (2p 3w)

    2p+E (2p 3w)

    Female

    6mm˛  / 10 AWG


    Capsulock
    6mm˛  / 10 AWG power contacts

    Part No. SGHCL10

  • Male and female high conductivity alloy machined contacts

    Male and female high conductivity alloy machined contacts

    SGHP10SMS and SGHP10SFS

    SGHP10SMS and SGHP10SFS



    Contact size10Section6 mm2 / 10 AWG
    Potential drop65 mV
    Voltage rating AC700 VVoltage rating DC500 V
    Max current73 AmpRated current46 Amp
    Min. Flashover2800 Vac RMSTest voltage2000 Vac RMS

  • Signal central inserts

    Signal central inserts

    for additional analog
    or digital signals

    for additional analog
    or digital signals

  • Male

    Male

    Analog - digital

    Analog - digital

    Male

    12 gold crimp contacts size 16
    0,15 ÷ 0,6 mm˛ (26÷20 AWG)


    Part No. SGHP16GMC

  • Female

    Female

    Analog - digital

    Analog - digital

    Female

    12 gold crimp contacts size 16
    0,15 ÷ 0,6 mm˛ (26÷20 AWG)


    Part No. SGHP16GFC

  • Male and female high conductivity alloy machined contacts

    Male and female high conductivity alloy machined contacts

    SGHP16GMC and SGHP16GFC

    SGHP16GMC and SGHP16GFC


    Contact size16Section0,15÷0,6 mm˛ / 26÷20 AWG
    Max current22 AmpRated current13 Amp
    Potential drop74 mV
    Dielectric Strength4.5 KVVoltage rating < 50 Vrms
  • Blank insert

    Blank insert

    Blank insert

    Male and Female | Insulating insert

    Male and Female | Insulating insert

    Reversible, fits both male and female connectors

  • Tunnel Modules

    Tunnel Modules

    The insulated modules fitted in the Syntax Safe Tunnels hold a pair of signal contacts and are color coded deriving from EIA / TIA standard (for Ethernet) or black (for other kinds of signals).

    On the SGH series, two shell sizes are available.
    The smaller shell is for SGH 8.1 versions, and holds 8 modules + 1 central insert.
    The bigger shell is for SGH 16.1 versions, and holds 16 modules + 1 central insert.

     Syntax SGH outer signal modules
  • Female

    Female

    Female

    module for Syntax Safe Tunnel

    module for Syntax Safe Tunnel


    Part No. SGHP20GFC
  • Male

    Male

    Male

    module for Syntax Safe Tunnel

    module for Syntax Safe Tunnel


    Part No. SGHP20GMC

  • Male and female high conductivity alloy machined contacts

    Male and female high conductivity alloy machined contacts

    SGHP20GFC and SGHP20GMC

    SGHP20GFC and SGHP20GMC


    Contact size20Section0,15÷0,3 mm˛ / 26÷22 AWG
    Max current10 AmpRated current7,5 Amp
    Potential drop83 mV
    Dielectric Strength4.2 KVVoltage rating < 50 Vrms

  • Order your modules & contacts pack

    Order your modules
    & contacts pack

    Choose the modules and contacts for your SGH connectors

    Choose the modules and contacts
    for your SGH connectors
  • Multicolor pack

    Multicolor pack

    Multicolor pack

    Pack with 4 EIA/TIA color-coded ethernet female modules + 10 female contacts

    Pack with 4 EIA/TIA color-coded ethernet female modules + 10 female contacts

    Part No. SGHMC20MF-PK04
  • Multicolor pack

    Multicolor pack

    Multicolor pack

    Pack with 4 EIA/TIA color-coded ethernet male modules + 10 male contacts

    Pack with 4 EIA/TIA color-coded ethernet male modules + 10 male contacts

    Part No. SGHMC20MM-PK04
  • Black pack

    Black pack

    Black pack

    Pack with 10 black female modules for shielded signals + 22 female contacts

    Pack with 10 black female modules for shielded signals + 22 female contacts

    Part No. SGHBK20MF-PK10
  • Black pack

    Black pack

    Black pack

    Pack with 10 black male modules for shielded signals + 22 male contacts

    Pack with 10 black male modules for shielded signals + 22 male contacts

    Part No. SGHBK20MM-PK10
  • Capsulock 16amp

    Capsulock 16amp

    Capsulock 16amp

    Pack with 10 Capsulocks for male and female 16amp power contacts

    Pack with 10 Capsulocks for male and female 16amp power contacts

    Part No. SGHCL11-PK10
  • Capsulock 32amp

    Capsulock 32amp

    Capsulock 32amp

    Pack with 10 Capsulocks for male and female 32amp power contacts

    Pack with 10 Capsulocks for male and female 32amp power contacts

    Part No. SGHCL10-PK10
